Ecobee Humidifier Wiring. Ecobee with humidifier wiring puzzle ecobee The isolation relay's coil that gets energized to activate it gets wired to the humidifier wire from thermostat and C/common terminal on the furnace. Make sure to tell the Ecobee that you have a STEAM type humidifier

Accessories with one wire attach to the thermostat's ACC+ connector and use the HVAC system's 24V power for activation, sourced from the Rc or Rh connector, depending on the thermostat model. Download documents included with your ecobee device

Ecobee humidifier wiring with transformer Community

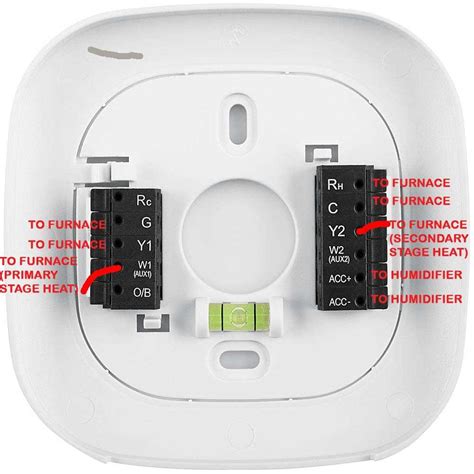

Using a small screwdriver, loosen the screws on the Ecobee3's wiring terminals Connect the humidifier's "H" wire to the "ACC+" terminal and the humidifier's "C" wire to the "ACC-" terminal Keep in mind if you have the Smart Thermostat Enhanced, use the PEK+ connector instead of ACC+.

Ecobee with humidifier wiring puzzle ecobee. Typically, a humidifier requires two wires for connection. In my original review of my very first Ecobee Smart Thermostat, I described how I had wired my Ecobee's equipment interface to my whole-house evaporative humidifier at the Utah house

Ecobee 3 with Aprilaire 700M humidifer wiring ecobee. Make sure to tell the Ecobee that you have a STEAM type humidifier 600m is an evaporative humidifier, and should be a 1 wire I believe as long as everything is 24vac and you are wiring to an appropriately sized transformer that also runs the furnace
